agx::Object is a refcounted object with a name. More...

#include <Object.h>

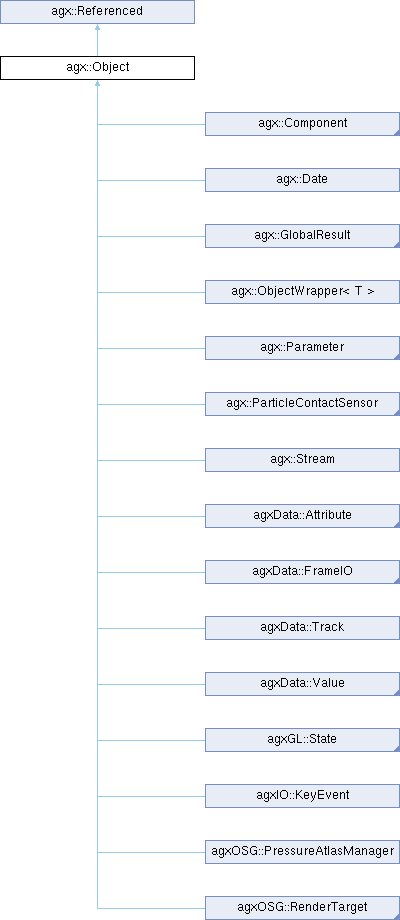

Inheritance diagram for agx::Object:

Classes
class	Event

Public Types
typedef agx::observer_ptr< const Event >	EventConstObserver

typedef agx::ref_ptr< const Event >	EventConstRef

typedef agx::observer_ptr< Event >	EventObserver

typedef agx::Vector< EventObserver >	EventObserverVector

typedef agx::VectorPOD< Event * >	EventPtrVector

typedef agx::ref_ptr< Event >	EventRef

typedef agx::Vector< EventRef >	EventRefVector

Public Member Functions
	Object (const Name &name=Name(), Model *model=Object::ClassModel())

void	addListener (EventListener *listener)

virtual void	buildNavigationTree (agxJson::Value &eNode) const

virtual void	configure (TiXmlElement *)

agx::String	fullName () const

agx::String	fullPath () const

agx::String	fullPath (const agx::Object *root) const

template<typename T >
T *	getAutoScopedResource (const agx::Path &path)

template<typename T >
const T *	getAutoScopedResource (const agx::Path &path) const

agx::Object *	getAutoScopedResource (const agx::Path &path, agx::Model *model=nullptr)

const agx::Object *	getAutoScopedResource (const agx::Path &path, agx::Model *model=nullptr) const

agx::Object *	getContext ()

template<typename T >
T *	getContext ()

const agx::Object *	getContext () const

template<typename T >
const T *	getContext () const

agx::UInt32	getId () const

const agx::Name &	getImplementationName () const

agx::Model *	getModel ()

const agx::Model *	getModel () const

const agx::Name &	getName () const

agx::Object *	getNextSibling ()

const agx::Object *	getNextSibling () const

agx::Path	getPath () const

agx::Path	getPath (const agx::Object *root) const

template<typename T >
T *	getResource (const agx::Path &path)

template<typename T >
const T *	getResource (const agx::Path &path) const

agx::Object *	getResource (const agx::Path &path, agx::Model *model=nullptr)

const agx::Object *	getResource (const agx::Path &path, agx::Model *model=nullptr) const

virtual agx::Object *	getResourceImpl (const agx::Path &path, agx::Model *model)

agx::Object *	getRootContext ()

const agx::Object *	getRootContext () const

bool	hasListener (EventListener *listener)

bool	hasParent (const agx::Object *node) const

bool	isUnique () const

virtual void	printSubtree () const

virtual void	rebind ()

void	removeListener (EventListener *listener)

virtual void	save (TiXmlElement *) const

virtual void	setContext (agx::Object *context)

void	setId (UInt32 id)

void	setModel (agx::Model *model)
	Set the object model (handled automatically).

void	setName (const agx::Name &name)
	Set the name of the object.

virtual void	snapshot (TiXmlNode *, const String &) const

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Static Public Member Functions
static agx::Model *	ClassModel ()

static agx::String	generateName (const agx::String &bindPath)

static const HashSet< Object * > &	getActiveObjects ()

static bool	getEnableRebind ()
	Should rebinding be allowed? Right now a global setting.

static Object *	load (const String &path, Device *device, const String &type, const String &attribute, const String &value)

template<typename T >
static T *	load (const String &path, Device *device, const String &type, const String &attribute, const String &value)

static Object *	load (const String &path, Device *device, const String &type="", size_t instance=0)

template<typename T >
static T *	load (const String &path, Device *device, const String &type="", size_t instance=0)

static void	load (const String &path, Device *device, ObjectPtrVector &loadedObjects)

static Object *	load (TiXmlElement eObject, Device device)

template<typename T >
static T *	load (TiXmlElement eObject, Device device)

static TiXmlDocument	openDocument (const String &path)

static void	setEnableRebind (bool flag)
	Sets if rebinding of objects should be allowed (Right now a global setting).

Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Protected Member Functions
virtual	~Object ()

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Detailed Description

agx::Object is a refcounted object with a name.

It is used together with the subclass agx::Component to build hierarchies of objects, which can be accessed dynamically at runtime using string paths.

Definition at line 58 of file Object.h.

Member Typedef Documentation

◆ EventConstObserver

typedef agx::observer_ptr< const Event > agx::Object::EventConstObserver

Definition at line 61 of file Object.h.

◆ EventConstRef

typedef agx::ref_ptr< const Event > agx::Object::EventConstRef

Definition at line 61 of file Object.h.

◆ EventObserver

typedef agx::observer_ptr< Event > agx::Object::EventObserver

Definition at line 61 of file Object.h.

◆ EventObserverVector

typedef agx::Vector< EventObserver> agx::Object::EventObserverVector

Definition at line 62 of file Object.h.

◆ EventPtrVector

typedef agx::VectorPOD< Event *> agx::Object::EventPtrVector

Definition at line 62 of file Object.h.

◆ EventRef

typedef agx::ref_ptr< Event > agx::Object::EventRef

Definition at line 61 of file Object.h.

◆ EventRefVector

typedef agx::Vector< EventRef> agx::Object::EventRefVector

Definition at line 62 of file Object.h.

Constructor & Destructor Documentation

◆ Object()

agx::Object::Object	(	const Name &	name = `Name()`,
		Model *	model = `Object::ClassModel()`
	)

◆ ~Object()

virtual agx::Object::~Object ( )

protectedvirtual

Member Function Documentation

◆ addListener()

void agx::Object::addListener ( EventListener * listener )

◆ buildNavigationTree()

virtual void agx::Object::buildNavigationTree ( agxJson::Value & eNode ) const

virtual

Reimplemented in agx::Component, agx::Model, agx::Pointer, agxData::Buffer, and agxData::Value.

◆ ClassModel()

static agx::Model * agx::Object::ClassModel ( )

static

◆ configure()

virtual void agx::Object::configure ( TiXmlElement * )

inlinevirtual

Reimplemented in agx::Clock, agx::Component, agx::Clock, agx::Kernel, agx::UnresolvedParameter, agx::ScalarParameter, agx::ArrayParameter, agx::PointerParameter, agx::EntityDataParameter, agx::EntityPtrParameter, agx::EntityInstanceParameter, agx::Pointer, agx::Task, and agx::UnresolvedTask.

Definition at line 103 of file Object.h.

◆ fullName()

agx::String agx::Object::fullName ( ) const

Returns: name:implementation

Referenced by agxData::Buffer::getElement(), and agxData::Buffer::ptr().

◆ fullPath() [1/2]

agx::String agx::Object::fullPath ( ) const

Returns: path:implementation

◆ fullPath() [2/2]

agx::String agx::Object::fullPath ( const agx::Object * root ) const

◆ generateName()

static agx::String agx::Object::generateName ( const agx::String & bindPath )

static

◆ getActiveObjects()

static const HashSet< Object * > & agx::Object::getActiveObjects ( )

static

◆ getAutoScopedResource() [1/4]

template<typename T >

T * agx::Object::getAutoScopedResource ( const agx::Path & path )

Definition at line 427 of file Object.h.

References getAutoScopedResource(), and agx::Referenced::is().

◆ getAutoScopedResource() [2/4]

template<typename T >

const T * agx::Object::getAutoScopedResource ( const agx::Path & path ) const

Definition at line 434 of file Object.h.

◆ getAutoScopedResource() [3/4]

agx::Object * agx::Object::getAutoScopedResource	(	const agx::Path &	path,
		agx::Model *	model = `nullptr`
	)

Returns: The resource with the first matching subpath starting from this node and traversing upwards to the root.

Referenced by getAutoScopedResource().

◆ getAutoScopedResource() [4/4]

const agx::Object * agx::Object::getAutoScopedResource	(	const agx::Path &	path,
		agx::Model *	model = `nullptr`
	)		const

◆ getContext() [1/4]

Object * agx::Object::getContext ( )

Returns: The parent node in the system tree.

Definition at line 372 of file Object.h.

Referenced by agxData::Value::get(), getContext(), and agx::Model::getNamespace().

◆ getContext() [2/4]

template<typename T >

T * agx::Object::getContext

Definition at line 400 of file Object.h.

References getContext().

◆ getContext() [3/4]

const Object * agx::Object::getContext ( ) const

Definition at line 373 of file Object.h.

◆ getContext() [4/4]

template<typename T >

const T * agx::Object::getContext

Definition at line 406 of file Object.h.

References getContext().

◆ getEnableRebind()

static bool agx::Object::getEnableRebind ( )

static

Should rebinding be allowed? Right now a global setting.

◆ getId()

UInt32 agx::Object::getId ( ) const

Returns: The global object id.

Definition at line 369 of file Object.h.

Referenced by agxData::EntityStorage::indexToId().

◆ getImplementationName()

const agx::Name & agx::Object::getImplementationName ( ) const

Returns: The implementation name of the model. Alias for getModel()->getImplementationName()

◆ getModel() [1/2]

Model * agx::Object::getModel ( )

Returns: The object model.

Definition at line 370 of file Object.h.

◆ getModel() [2/2]

const Model * agx::Object::getModel ( ) const

Definition at line 371 of file Object.h.

◆ getName()

const Name & agx::Object::getName ( ) const

Returns: Then name of the object.

Definition at line 368 of file Object.h.

Referenced by agxData::Value::get(), agxData::EntityStorage::get(), agxData::FormatBinding< T >::getFormat(), and agxData::EntityPtr::operator()().

◆ getNextSibling() [1/2]

agx::Object * agx::Object::getNextSibling ( )

Returns: The next sibling with identical name.

◆ getNextSibling() [2/2]

const agx::Object * agx::Object::getNextSibling ( ) const

◆ getPath() [1/2]

agx::Path agx::Object::getPath ( ) const

Returns: The path to the object in the system tree.

Referenced by agx::ArrayParameter::get(), agx::PointerParameter::get(), agx::ScalarParameter::get(), agx::Component::getObject(), agxData::EntityInstance::verifyIndex(), and agxData::EntityPtr::verifyIndex().

◆ getPath() [2/2]

agx::Path agx::Object::getPath ( const agx::Object * root ) const

Returns: A relative path from a specified root

Parameters

root	A node along the parent path from this object.

◆ getResource() [1/4]

template<typename T >

T * agx::Object::getResource ( const agx::Path & path )

Definition at line 413 of file Object.h.

References getResource(), and agx::Referenced::is().

◆ getResource() [2/4]

template<typename T >

const T * agx::Object::getResource ( const agx::Path & path ) const

Definition at line 420 of file Object.h.

◆ getResource() [3/4]

agx::Object * agx::Object::getResource	(	const agx::Path &	path,
		agx::Model *	model = `nullptr`
	)

Returns: A resource in the subtree below this object.

Referenced by getResource().

◆ getResource() [4/4]

const agx::Object * agx::Object::getResource	(	const agx::Path &	path,
		agx::Model *	model = `nullptr`
	)		const

◆ getResourceImpl()

virtual agx::Object * agx::Object::getResourceImpl	(	const agx::Path &	path,
		agx::Model *	model
	)

virtual

Reimplemented in agxData::EntityStorage, agxIO::KeyEvent, agx::Component, agx::Parameter, agx::ScalarParameter, agx::ArrayParameter, agx::PointerParameter, agx::EntityDataParameter, agx::Pointer, and agx::Task.

◆ getRootContext() [1/2]

agx::Object * agx::Object::getRootContext ( )

Returns: The root context.

◆ getRootContext() [2/2]

const agx::Object * agx::Object::getRootContext ( ) const

◆ hasListener()

bool agx::Object::hasListener ( EventListener * listener )

◆ hasParent()

bool agx::Object::hasParent ( const agx::Object * node ) const

Returns: True if the specified node is located somewhere in the path above the object.

◆ isUnique()

bool agx::Object::isUnique ( ) const

Definition at line 374 of file Object.h.

◆ load() [1/7]

static Object * agx::Object::load	(	const String &	path,
		Device *	device,
		const String &	type,
		const String &	attribute,
		const String &	value
	)

static

◆ load() [2/7]

template<typename T >

T * agx::Object::load	(	const String &	path,
		Device *	device,
		const String &	type,
		const String &	attribute,
		const String &	value
	)

static

Definition at line 385 of file Object.h.

References load().

◆ load() [3/7]

static Object * agx::Object::load	(	const String &	path,
		Device *	device,
		const String &	type = `""`,
		size_t	instance = `0`
	)

static

◆ load() [4/7]

template<typename T >

T * agx::Object::load	(	const String &	path,
		Device *	device,
		const String &	type = `""`,
		size_t	instance = `0`
	)

static

Definition at line 378 of file Object.h.

References load().

◆ load() [5/7]

static void agx::Object::load	(	const String &	path,
		Device *	device,
		ObjectPtrVector &	loadedObjects
	)

static

◆ load() [6/7]

static Object * agx::Object::load	(	TiXmlElement *	eObject,
		Device *	device
	)

static

Referenced by load().

◆ load() [7/7]

template<typename T >

T * agx::Object::load	(	TiXmlElement *	eObject,
		Device *	device
	)

static

Definition at line 392 of file Object.h.

References load().

◆ openDocument()

static TiXmlDocument agx::Object::openDocument ( const String & path )

static

◆ printSubtree()

virtual void agx::Object::printSubtree ( ) const

inlinevirtual

Reimplemented in agx::Component.

Definition at line 253 of file Object.h.

◆ rebind()

virtual void agx::Object::rebind ( )

inlinevirtual

Reimplemented in agxData::FunctionValue, agx::Clock, agx::Component, agx::Kernel, agx::Parameter, agx::Task, agxData::Value, and agxIO::KeyEvent.

Definition at line 261 of file Object.h.

◆ removeListener()

void agx::Object::removeListener ( EventListener * listener )

◆ save()

virtual void agx::Object::save ( TiXmlElement * ) const

inlinevirtual

Reimplemented in agx::Clock.

Definition at line 104 of file Object.h.

◆ setContext()

virtual void agx::Object::setContext ( agx::Object * context )

virtual

Reimplemented in agxData::FunctionValue, and agx::Task.

◆ setEnableRebind()

static void agx::Object::setEnableRebind ( bool flag )

static

Sets if rebinding of objects should be allowed (Right now a global setting).

Allowing it when adding larger parts to the system tree might hit performance, so it might be smarter to disable it first, then add, and then enable again.

◆ setId()

void agx::Object::setId ( UInt32 id )

◆ setModel()

void agx::Object::setModel ( agx::Model * model )

Set the object model (handled automatically).

References agx::getModel().

◆ setName()

void agx::Object::setName ( const agx::Name & name )

Set the name of the object.

◆ snapshot()

virtual void agx::Object::snapshot	(	TiXmlNode *	,
		const String &
	)		const

inlinevirtual

Reimplemented in agx::Component.

Definition at line 105 of file Object.h.

The documentation for this class was generated from the following file:

Object.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ EventConstObserver

◆ EventConstRef

◆ EventObserver

◆ EventObserverVector

◆ EventPtrVector

◆ EventRef

◆ EventRefVector

Constructor & Destructor Documentation

◆ Object()

◆ ~Object()

Member Function Documentation

◆ addListener()

◆ buildNavigationTree()

◆ ClassModel()

◆ configure()

◆ fullName()

◆ fullPath() [1/2]

◆ fullPath() [2/2]

◆ generateName()

◆ getActiveObjects()

◆ getAutoScopedResource() [1/4]

◆ getAutoScopedResource() [2/4]

◆ getAutoScopedResource() [3/4]

◆ getAutoScopedResource() [4/4]

◆ getContext() [1/4]

◆ getContext() [2/4]

◆ getContext() [3/4]

◆ getContext() [4/4]

◆ getEnableRebind()

◆ getId()

◆ getImplementationName()

◆ getModel() [1/2]

◆ getModel() [2/2]

◆ getName()

◆ getNextSibling() [1/2]

◆ getNextSibling() [2/2]

◆ getPath() [1/2]

◆ getPath() [2/2]

◆ getResource() [1/4]

◆ getResource() [2/4]

◆ getResource() [3/4]

◆ getResource() [4/4]

◆ getResourceImpl()

◆ getRootContext() [1/2]

◆ getRootContext() [2/2]

◆ hasListener()

◆ hasParent()

◆ isUnique()

◆ load() [1/7]

◆ load() [2/7]

◆ load() [3/7]

◆ load() [4/7]

◆ load() [5/7]

◆ load() [6/7]

◆ load() [7/7]

◆ openDocument()

◆ printSubtree()

◆ rebind()

◆ removeListener()

◆ save()

◆ setContext()

◆ setEnableRebind()

◆ setId()

◆ setModel()

◆ setName()

◆ snapshot()
